Reliable Turbocharger Housing Machining Solutions from Suzhou Yongpu Precision Earn Recognition in the South Korean Market.

To address the core challenges of machining holes in turbocharger housings, Suzhou Yongpu Precision innovatively employs two distinct drilling solutions, precisely tailored to different customer scenarios, enabling significant cost reduction and efficiency improvement. The specific solutions and results are as follows:

• 2-Flute Drill Solution: Prioritizing stability and reliability, this solution adapts to various complex machining conditions. It helped the customer achieve annual cost savings of RMB 88,640, corresponding to an annual machining cost reduction of 12%.

• 3-Flute Drill Solution: Emphasizing high-efficiency machining, this solution significantly boosts processing speed and shortens production cycles. It helped the customer achieve annual cost savings of RMB 130,140, corresponding to an annual machining cost reduction of 18%.

The turbocharger housing (typically comprising the compressor housing and turbine housing) is a core precision component in modern engines. Its inherent properties directly dictate the primary difficulties in hole machining, with the two being closely interconnected.

The following provides a detailed analysis combining turbo housing characteristics, hole machining challenges, Yongpu Precision's strategies, and practical case studies.

1 High Heat Resistance & Thermal Fatigue Strength

• Turbine Housing: Directly connected to the engine exhaust manifold, it must withstand exhaust gas temperatures up to 1050°C, with normal operating temperatures between 800-1000°C. The material must endure severe thermal cycling without cracking (i.e., possess anti-thermal fatigue properties).

• Compressor Housing: While operating at relatively lower temperatures, it must withstand long-term heat and pressure from compressed air, still requiring materials with good heat and pressure resistance.

Exposed to harsh exhaust environments featuring high temperatures, sulfur, and moisture, turbine housings are prone to high-temperature oxidation and sulfidation corrosion. Therefore, the material must possess excellent corrosion resistance to ensure long-term, stable operation.

3.Specialized & Difficult-to-Machine Materials

• Common Materials: The industry primarily uses two types: high-silicon molybdenum ductile iron (e.g., D5S, D5H), valued for its good heat resistance and relatively controllable cost, making it the preferred choice for many standard turbine housings; and austenitic heat-resistant stainless steel (e.g., DIN 1.4837), used for high-performance housings requiring more demanding operating conditions.
•

• Machinability: These materials generally have poor thermal conductivity, causing heat to concentrate at the tooltip during machining and accelerating tool wear. Additionally, the materials themselves are hard, wear-resistant, and contain abrasive silicon oxide (SiO2) or carbide particles, further intensifying tool wear and posing significant machining challenges.

4.Complex Structure & High Precision Requirements

The internal structure features a complex three-dimensional scroll volute, with an irregular overall shape and uneven wall thickness, making deformation and dimensional deviation common during machining. Furthermore, the housing contains numerous mounting holes, oil passages, cooling water jackets, and sealing surfaces. The positional accuracy and geometric tolerances for these features are extremely strict, directly impacting the precise assembly and sealing performance with the turbine, compressor wheel, bearing housing, and engine—critical to final product quality.

5. Lightweight & High-Strength Demands

While meeting core requirements like heat resistance, fatigue resistance, and corrosion resistance, the industry's demand for lightweight turbo housings is increasing, driving efforts to minimize wall thickness. This trend not only raises the bar for casting processes but also imposes stricter challenges on the structural integrity and dimensional accuracy of the machined part.

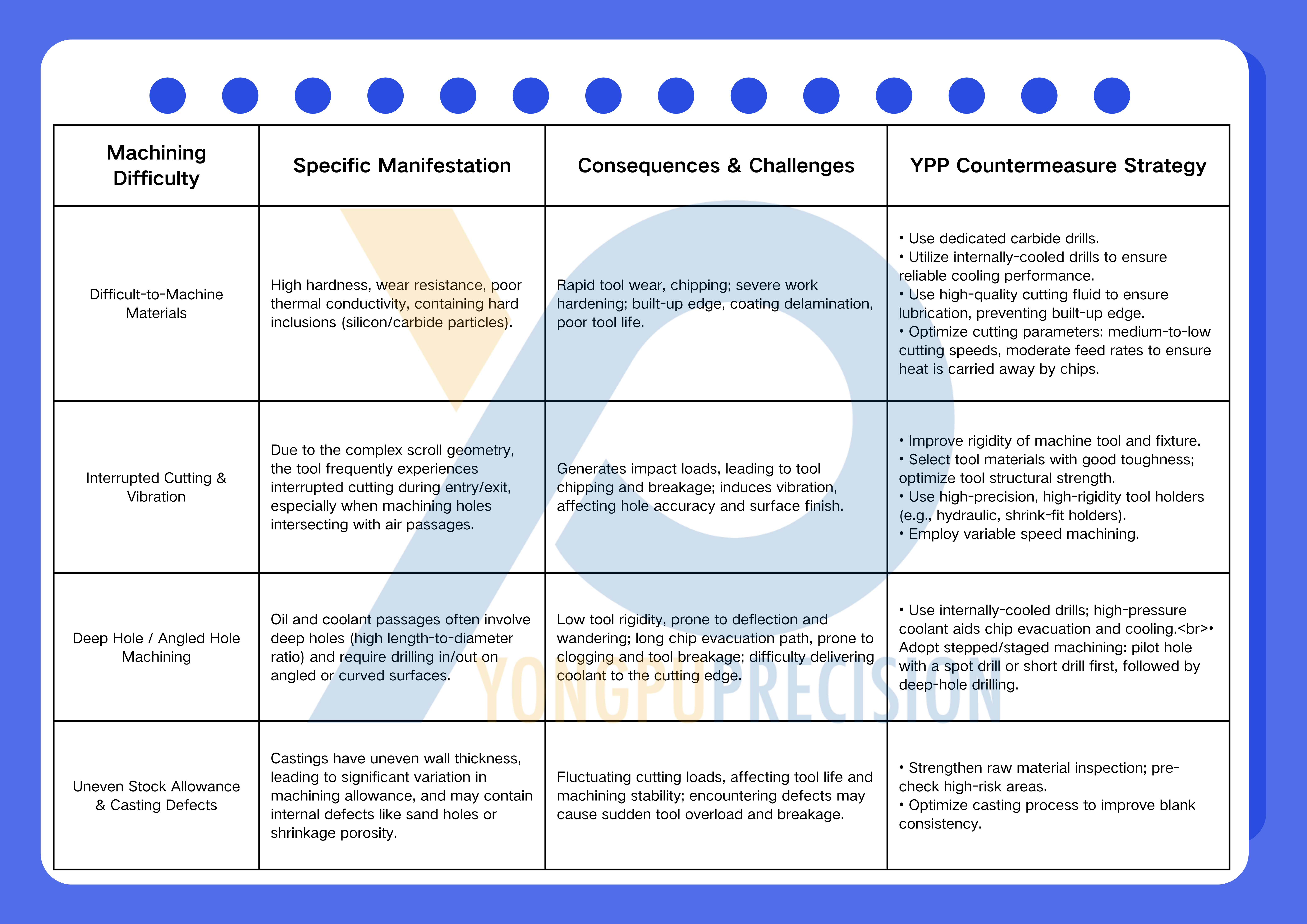

Considering the turbo housing's characteristics, the holes on the housing are diverse, including bearing housing mounting holes, volute fixing bolt holes, wastegate valve holes, oil inlet/outlet holes, and cooling water holes. Different holes serve different functions, and their machining challenges vary accordingly. The corresponding strategies are as follows:

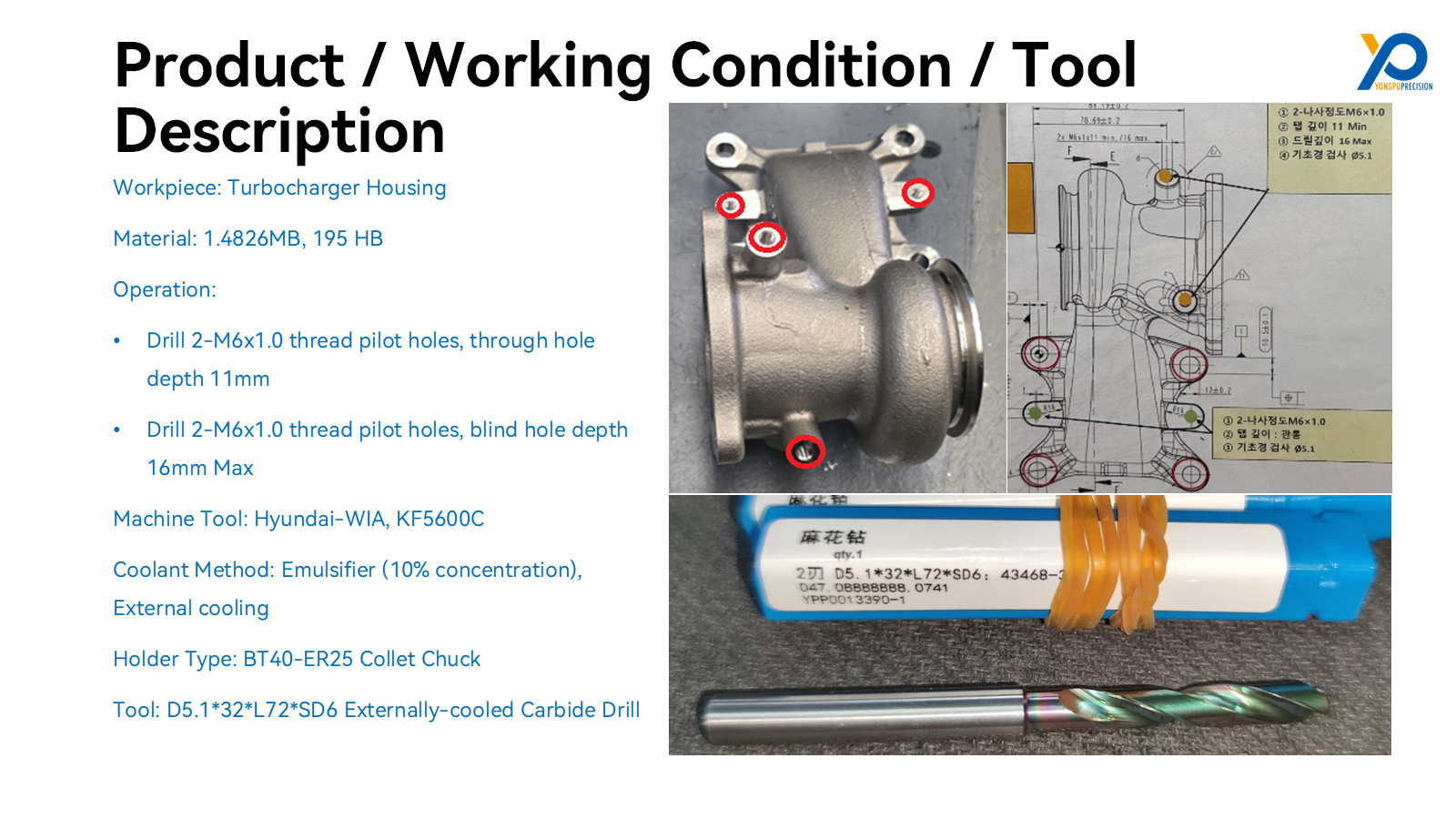

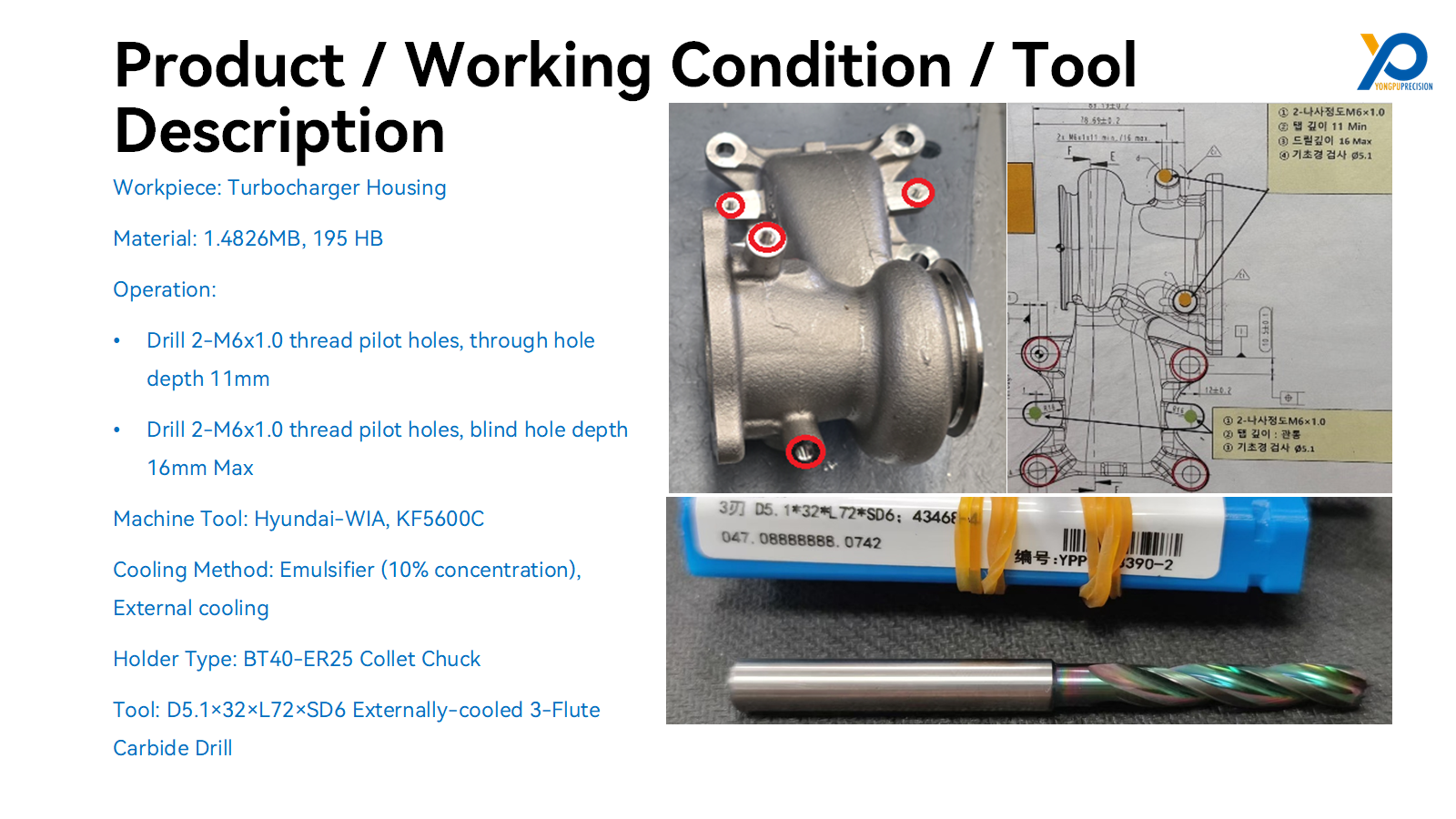

Case Study

Results & Benefits

After implementation, the solutions effectively addressed the customer's core pain points of rapid tool wear and low machining efficiency. Hole accuracy and surface finish met customer standards.

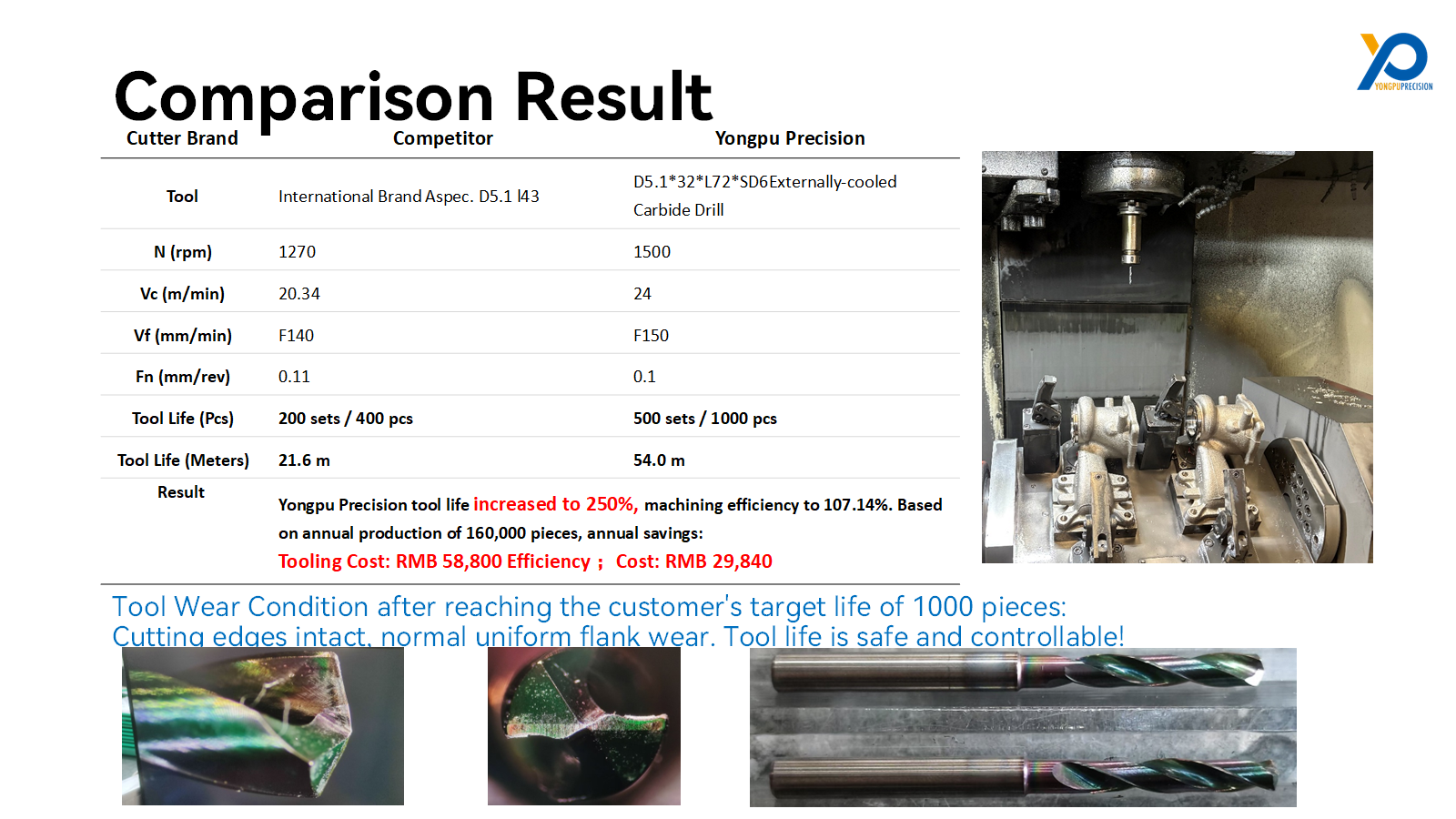

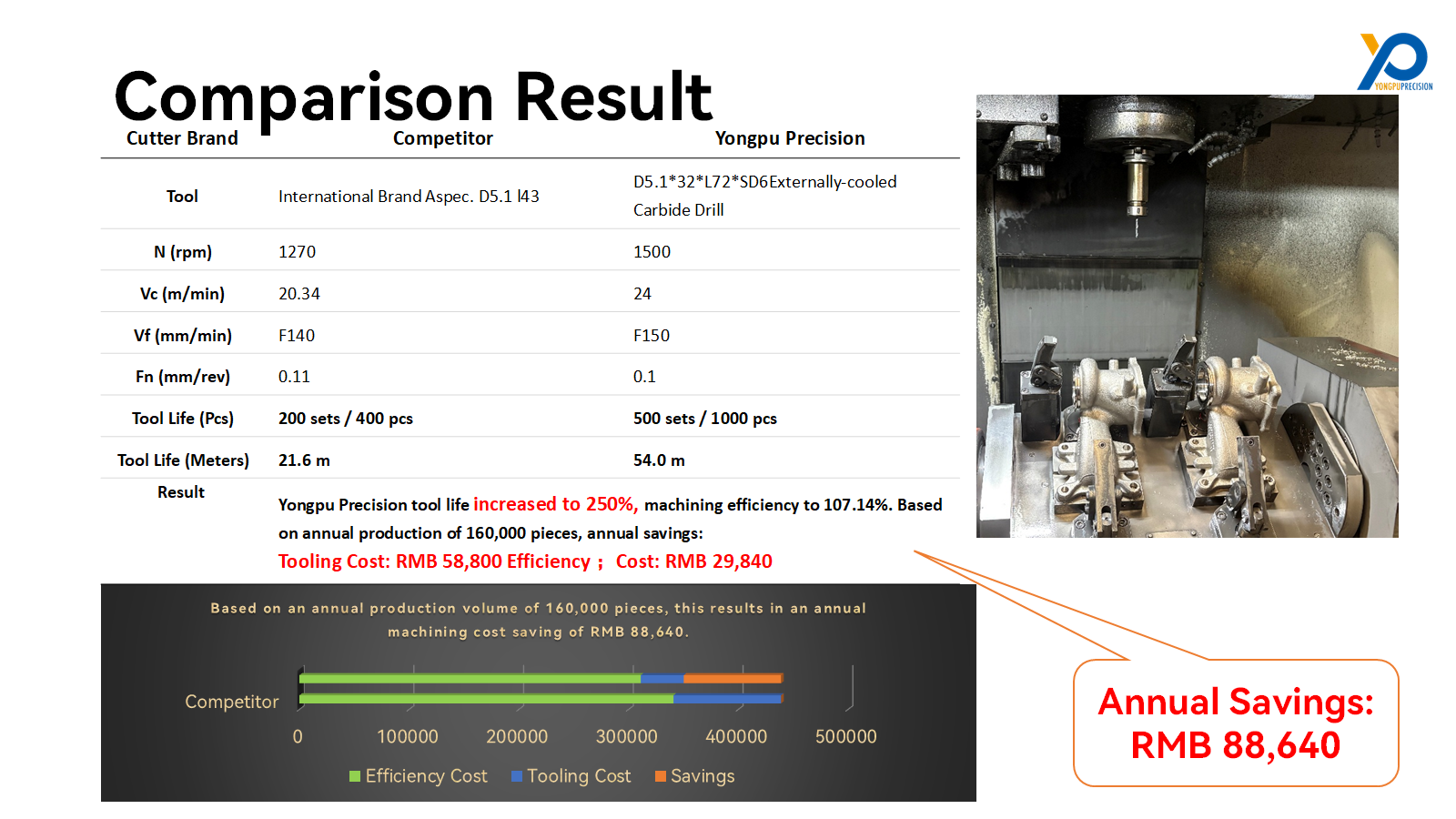

The stable performance of the 2-Flute Drill Solution helped the customer achieve annual cost savings of RMB 88,640 (a 12% reduction in annual machining costs).

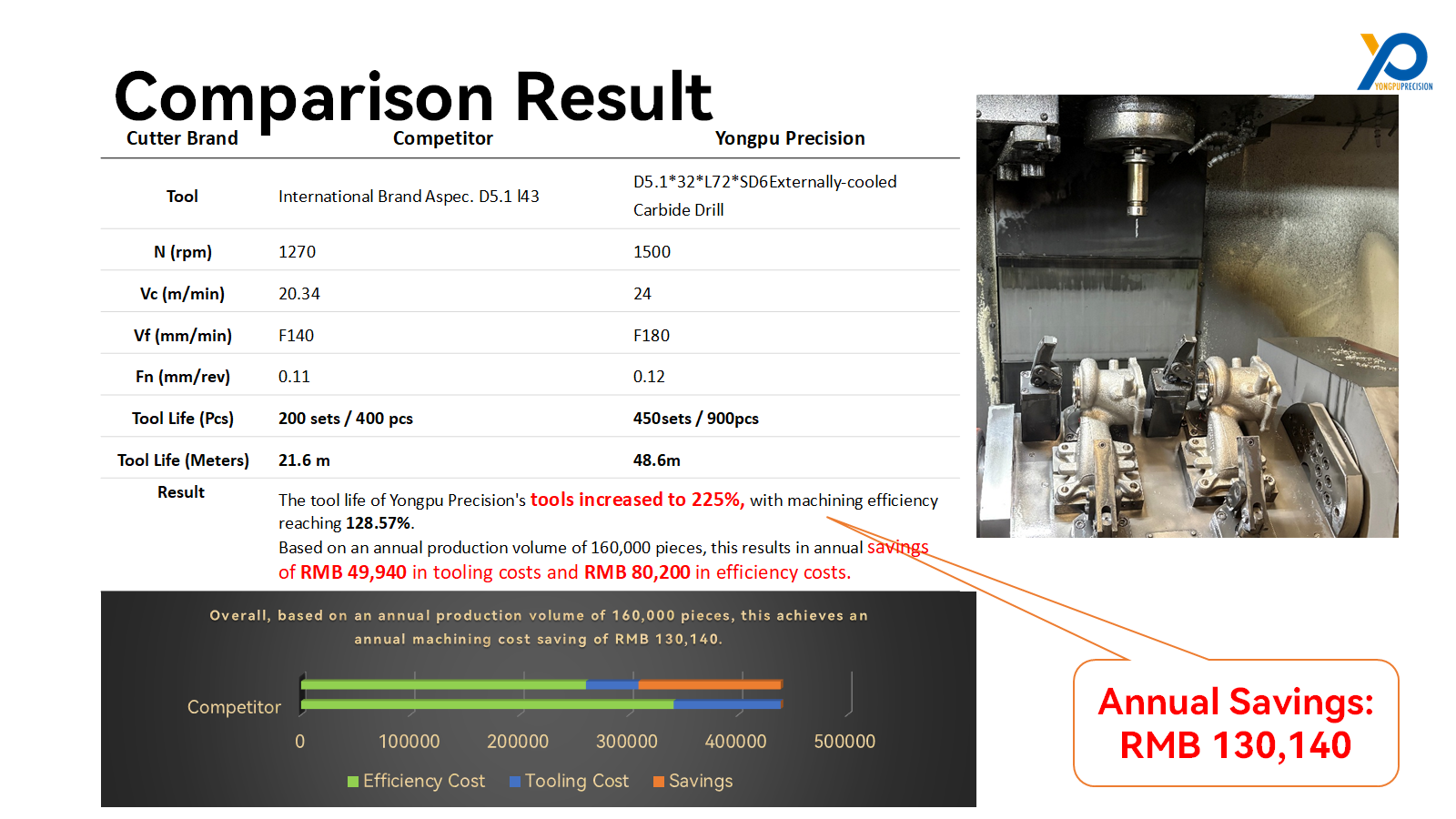

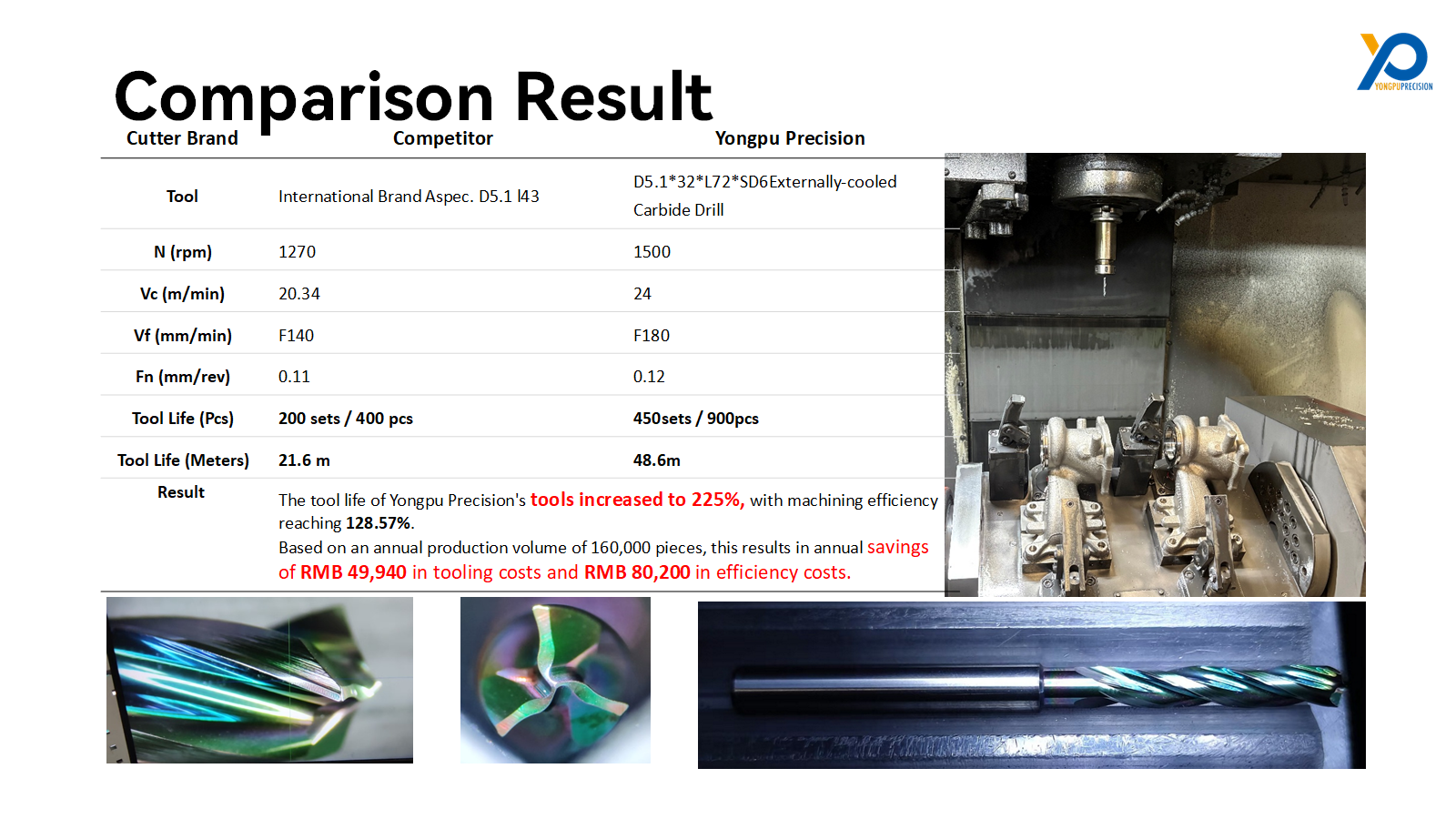

The high efficiency of the 3-Flute Drill Solution significantly shortened production cycles, helping the customer achieve annual cost savings of RMB 130,140 (an 18% reduction in annual machining costs).

The overall cost-saving results are substantial and have earned high recognition from the customer, laying a solid foundation for Suzhou Yongpu Precision's further expansion into the South Korean market.

Yongpu Precision's Turbocharger Housing Hole Machining Solutions Save Customers Over RMB 200,000 Annually!
